Modern solar installations, particularly commercial and utility-scale photovoltaic (PV) systems, commonly utilize long series strings of panels to achieve higher voltages.
- Each panel: ~40–60V DC
- 20–30 panels in series → 800V–1500V DC
- Some modern systems (like 1500V systems) can reach up to 1800V open-circuit voltage
A critical safety and operational consideration is that solar panels generate DC voltage continuously whenever they are exposed to sunlight; therefore, dangerous voltage levels are present in the system during daylight hours, even if the main inverter is switched off or disconnected.
Many now use 1500V systems, so technicians must use tools rated above that — typically 2000V DC CAT III or CAT IV.
Applications:
-- Solar Panel installation & Maintenance
-- Electrical Maintenance & Troubleshooting
-- Industrial Electronics
-- Electro-mechanical Equipment
Solar Panel Installation
-- Checking Open-Circuit Voltage (Voc)
-- Verifying System Voltage
-- Checking Current (Short-Circuit Current – Isc)
high safety ratings:
IEC61010-1 IEC 61010-2: CAT IV 600 V / CAT III 1000 V
CE and TÜV certification for maximum safety and global compliance
wireless PV clamp meter (additional)
DT-9481 / DT-9583A
usage combined with PV clamp meter , an essential tool for installing, maintaining, and troubleshooting photovoltaic (PV) systems. Unlike a standard clamp meter, solar-specific meter is designed to measure high-voltage DC current (often up to 1500V DC) and DC power (Watts) , which are critical for solar panel performance.
Safe Distance DC Current Measurement (Non-Contact)
You do not need to disconnect wires, pierce insulation, or make direct electrical contact with copper terminals. You maintain a safe distance to make measurement.

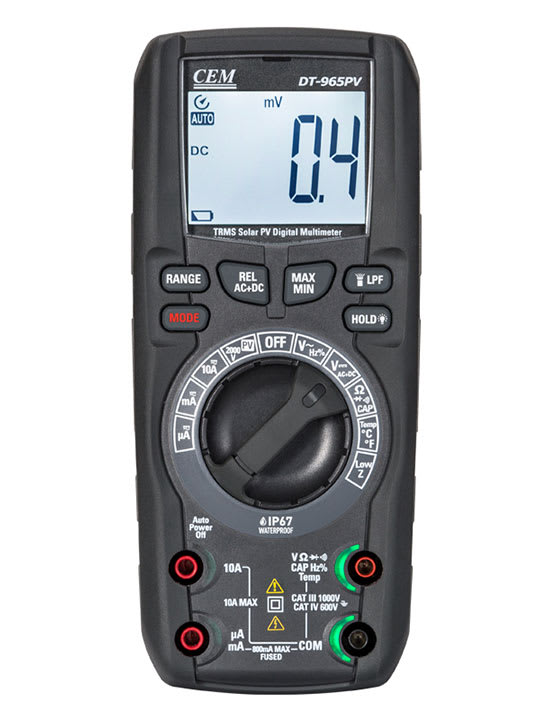

Features
tool application |
Solar Panel installation & Maintenance (commercial ) |
high safety ratings |
IEC/EN 61010: CAT IV 600 V / CAT III 1000 V |
|
|
|
solar system test |
open-circuit voltage, short-circuit current . DC up to 2000V |
measurement functions |
Measurement of AC/DC voltage, current, resistance, capacitance, frequency, temperature, duty cycle, and continuity, etc. |
True RMS accuracy |
true RMS, with high accuracy |
|
|
|
low pass filter (LPF) |
filter out high-frequency noise from inverters that can distort readings |
Relative mode : |
eliminates the test line impedance existed in low resistance or capacitance measurement. |
additional functions |
support Max/Min, Peak Capture, etc |
|
|
|
IP Rating |
IP67 dust and water proof. 3 meter drop protection rated for outdoor use and solar installation |
Ease of use |
Modern digital multimeters, Easy-to-Use |
certification |
CE, TüV certification |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
