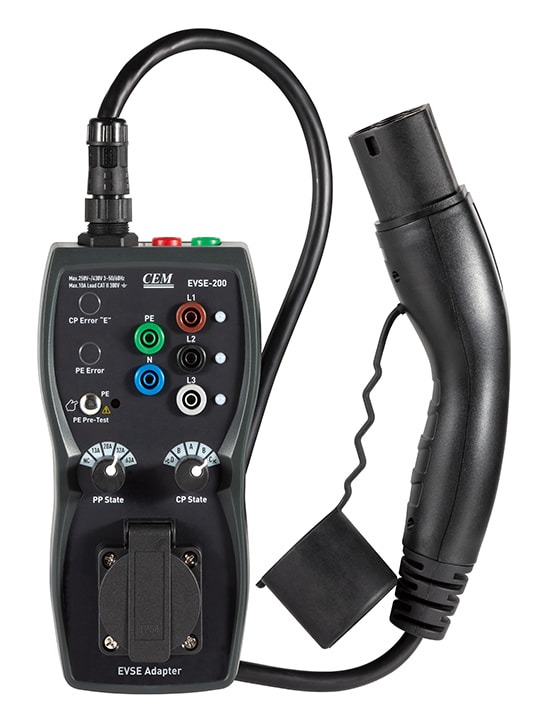

features
• Suitable to vehicle charging stations with charging mode 3

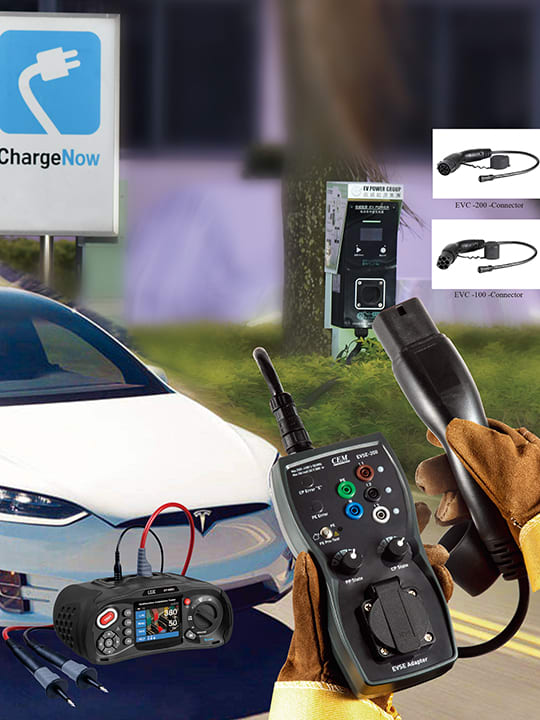

• EV-connectors for type 2 and type 1

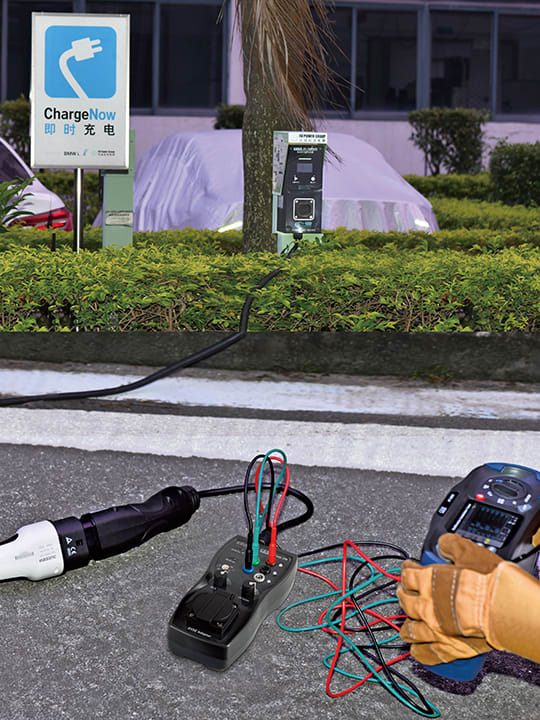

• Measuring terminals L1, L2, L3, N and PE to connect test device like installation
tester to perform safety and functional tests.
• Terminals for CP signal output to check communication between adapter (=simulated
electrical vehicle) and charging station.
Product highlights
• Separate phase indication by three LED lamps for easy check if voltage is present.
• Mains socket offering the possibility to connect an external load to check if the
electric power meter works and counts in the right manner.
• IP 54 rating - Dust and splashing water protected
Functions
• PE Pre-Test: With this safety feature the PE conductor can be tested for possible
presence of dangerous voltage against earth.
• Proximity Pilot (PP) state “Cable Simulation”: With PP State rotary switch the
adapter can simulate various current capabilities of charging cables.
• Control Pilot (CP) state “Vehicle Simulation”: With CP State rotary switch selector
various charging states can be simulated.
• Simulation of CP error “E”
• Simulation of PE error (Earth fault)
• RCD Troublshooting
