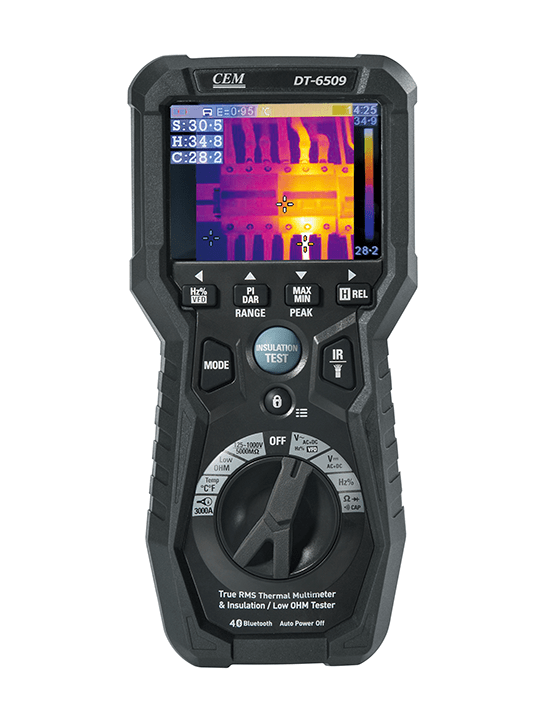

Insulation Tester: the device integrates insulation testing capabilities. It can test various types of insulating materials (such as rubber, plastic, etc.) and automatically calculate their insulation values.
Digital Multimeter: The device also features a digital multimeter function capable of measuring current, voltage, resistance, and more. further troubleshoot faults with high precision and sensitivity. It serves industrial automation equipment, power systems, and related fields
Infrared Temperature Measurement: This device incorporates a high-precision infrared probe for non-contact temperature measurement of object surfaces. Through the display image, we can clearly observe the temperature distribution across the object's surface.
Data Logging: The device can also record measurement data and supports transferring this data to a computer via USB / Bluetooth for subsequent analysis and processing.
Safety:
IEC61010-1 CAT IV 600V / CAT III 1000V
UL, CSA, and TÜV listed for maximum safety and global compliance
Applications:
-- Electric Vehicles: Ensuring the high-voltage battery system is completely isolated from the car's chassis for passenger safety.
-- HVAC: Testing compressor motor windings for acid or moisture contamination in the coolant.
-- Solar/Renewables: Testing the insulation of large PV arrays to ensure current isn't leaking into the mounting racks.
-- Telecommunications: Checking for "cross-talk" or leakage between pairs in long-distance copper communication lines.
EV & Hybrid application
Insulation resistance testing is critical in electric vehicles (EVs) and hybrid vehicles (HVs), primarily serving to ensure the safety of high-voltage electrical systems, prevent electric shock hazards, detect insulation failures, and meet safety standards.
a. Production and assembly stage
- Component Testing: Conduct insulation resistance tests on individual components such as battery packs, motors, vehicle control units (VCU), and on-board chargers (OBC).
- Vehicle Final Inspection: After vehicle assembly, perform insulation resistance testing on the entire high-voltage system to ensure compliance with safety standards
b. Daily Operation and Real-Time Monitoring
- Onboard Insulation Monitoring Device (IMD):
- Fault Diagnosis: During maintenance, handheld insulation meters (e.g., megohmmeters) are used to locate insulation faults within the battery pack, high-voltage wiring harnesses, connectors, etc.
c. Maintenance and Servicing
- Before High-Voltage System Maintenance: Verify system de-energization and normal insulation using an insulation meter.
- Post-Accident Vehicle Inspection: After collisions, inspect the high-voltage system for insulation damage.
Features
tool application |
EV & Hybrid / HVAC / Telecommunication |
insulation test voltage |
125V, 250V, 500V, 1000V |
Insulation test: |
125kΩ to 5000MΩ |
Diagnostic Functions |
Polarization index measurement (PI) Dielectric Absorption Ratio (DAR ) |
Accuracy |
High Accuracy ±2.0% + 8 |
Multimeter True RMS |
AC/DC voltage, current, Resistance (Ω), capacitance, Continuity |
Thermal Imager |
Built-in Thermal Imager design quickly identifies hot spots without contact |
Low OHMS |
support high resolution low ohm measurement |
display |
Large 240 x 320 3.5” TFT color 6000 counts LCD display |
Low pass filter (LPF) |
Low pass filter for accurate measurement of variable frequency drive (VFD) signals |
Current measurement extention |
3000A Flexible Coil Current Measurements (Optional) |
Logging function |
with Trend Capture for easy review of logged data |
Wireless Connection |
Bluetooth (PC / App) instant data transfer functions, thermal image process |
Safety Ratings |
IEC61010-1 CAT IV 600V / CAT III 1000V |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
