CEM DT-9481 solar Clamp Meter , mainly used in solar panel installation and maintenance , and wind power systems
The clamp meter will measure voltage up to AC /DC 1500V through the clamp jaw, and current AC / DC 1000A
The advantage of using solar clamp meter is to ensure safety , because it is no need to disconnect cables, reduce risk of arc flash, and make faster measurement in live systems
On top of that, through wireless connection by PC and smartphone, let PV installer easily manage the measurement data and report.
Applications:
-- Solar Panel installation & Maintenance
-- Electrical Maintenance & Troubleshooting
-- Industrial Electronics
-- Electro-mechanical Equipment

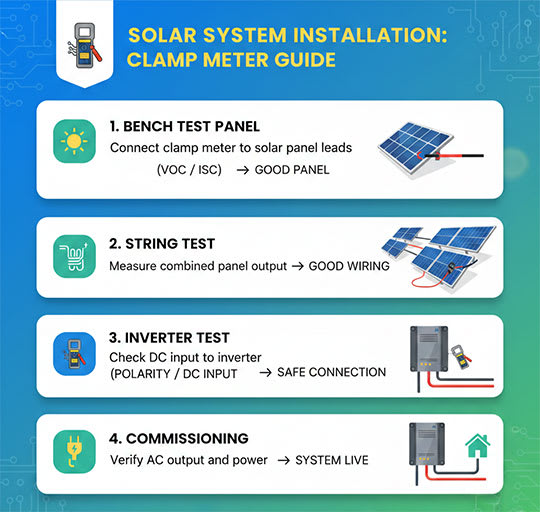

Solar System Installation
-- Bench Test Panel: (VOC / ISC) → Good Panel.
-- String Test: (Voltage Sum / Current) → Good Wiring.
-- Inverter Test: (Polarity / DC Input) → Safe Connection.
-- Commissioning: (AC Output / Power) → System Live.
high safety ratings:
IEC61010-1 IEC 61010-2: CAT IV 600 V / CAT III 1000 V
CE and TÜV certification for maximum safety and global compliance
Wireless connection (PC / App)
Through wireless connection, electricians can log and monitor measurements.
You maintain a safe distance to make measurement.

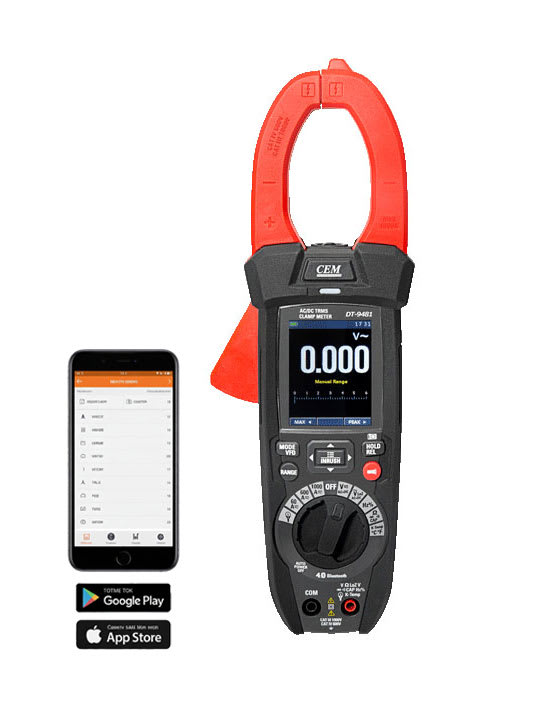

CEM CONNECT App - Meterbox Pro, a handy tool on smartphone.
Using it can transmit and log measurement results, create reports from the field.
Remote connection can remain safely away from the arc flash zone.
Features
tool application |
Solar Panel installation & Maintenance (residential , commercial ) |
high safety ratings |
IEC/EN 61010: CAT IV 600 V / CAT III 1000 V |
|
|
|
solar system test |
String test, inverter test . DC up to 1500V |

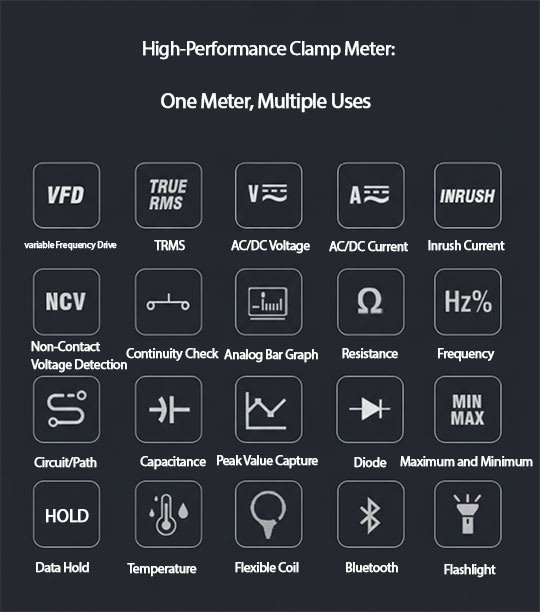

measurement functions |

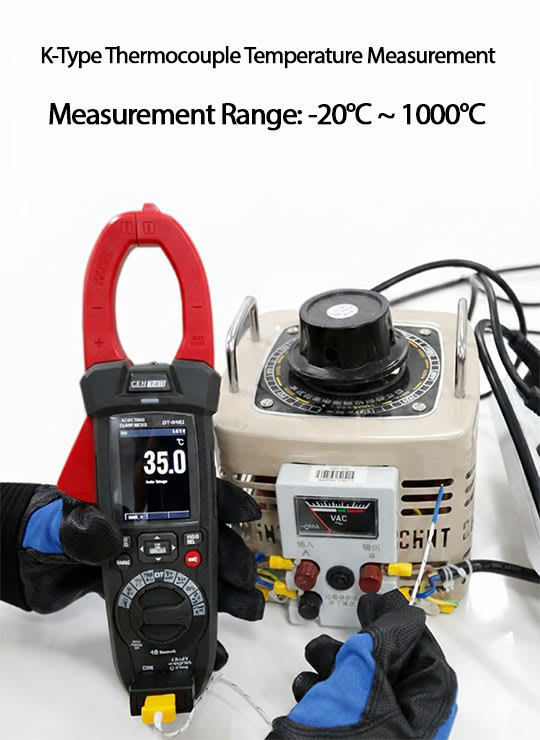

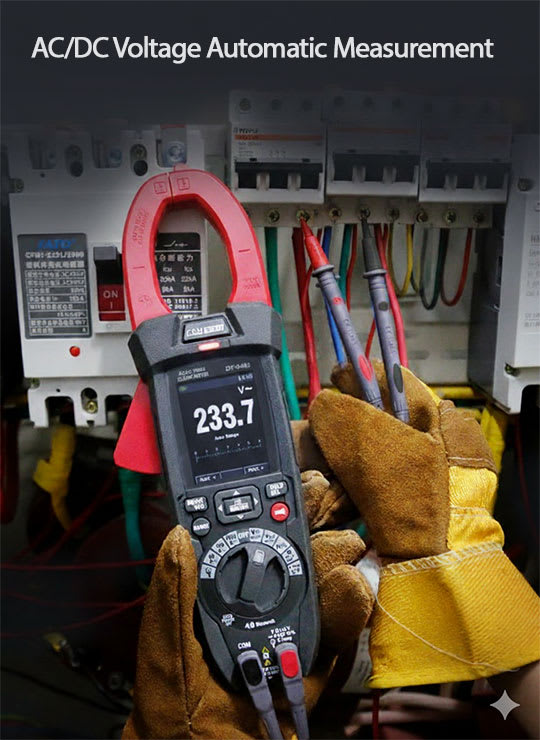

Measurement of AC/DC voltage, current, resistance, capacitance, frequency, temperature, duty cycle, and continuity, etc. |
True RMS accuracy |
true RMS, with high accuracy |
|
|
|
low pass filter (LPF) |
filter out high-frequency noise from inverters that can distort readings |
Inrush current |
Capture the inrush current at the moment the device starts up |

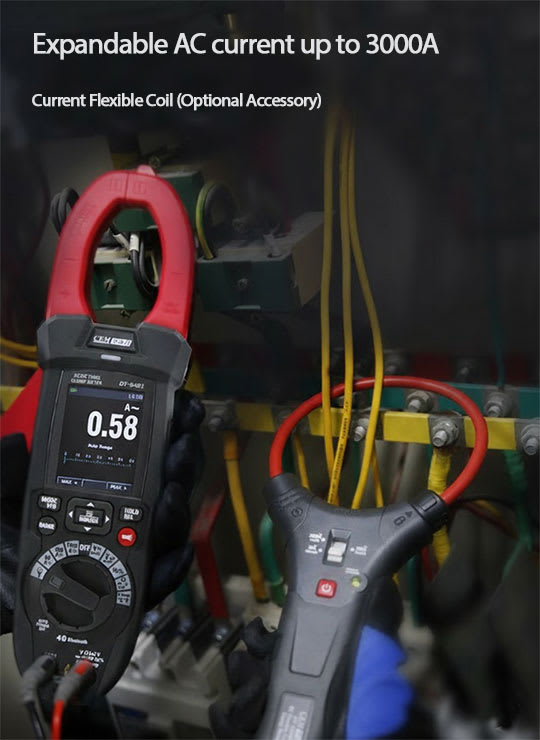

Flexible Clamp |
support current measurement up to 3000A (optional) |
|
|
|
data logging |
support data logging for diagnostics |
Wireless Connection |
by Bluetooth connetion with smartphone, keep and share data and report maintain a safe distance to make measurement |
IP Rating |
IP67 dust and water proof. 3 meter drop protection rated for outdoor use and solar installation |
Ease of use |
Modern digital multimeters, Easy-to-Use |
certification |
CE, TüV certification |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
