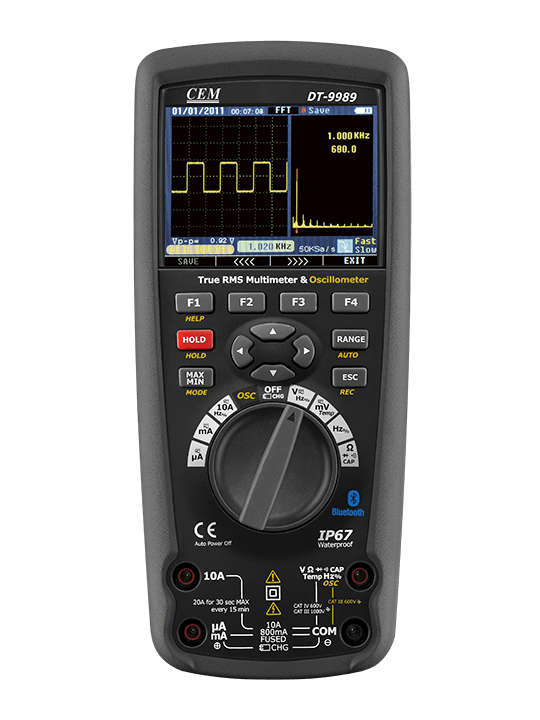

9989 Professional True RMS Industrial Digital Multimeter with oscilloscope function and TFT color LCD display, providing fast A/D converting sampling time, high accuracy, built-in data logging and Trend Capture features
Meter box pro software &cloud server support to transfer the measured data to customer's smartphone for edit and storage.
Features:
- Large 50,000 count 320 x 240 TFT color LCD display
- 20MHz/50MS/s bandwidth/Real time sample rate
- Logging function with Trend Capture for easy review of logged data
- Bluetooth PC interface for easy data transfer & accuracy calibration
- 100kHz bandwidth (voltage/current)
- AC, AC+DC true-RMS measurements
- 0.025% DCV accuracy with Fully PC Calibration
- Saves measurements, records events and trends
- 20 Times/sec. A/D convert fast sampling time
- Peak capture (records transients as fast as 250μs)
- Min/Max/Average with Time stamp (records signal fluctuations)
- Moto winding and low ohm (50Ω) measurement range
- Low pass filter
- IP Rating 67 & CATIII 1000V/CATIV 600V
- Bluetooth interface to smartphone / PC.
- Meterbox iMM & cloud service
