When a building experiences water intrusion, the damage extends far beyond what is visible. If not addressed quickly and correctly, moisture can lead to severe consequences:
- Structural Damage: Water can weaken foundational materials. It can cause wood to rot, metal to corrode, and concrete to crack or "spall" . For example, trapped moisture can lead to "wet rot within the timber structure" .
- Health Hazards: A damp environment is a breeding ground for mold and bacteria. Exposure to mold is linked to significant health risks, including the new-onset and exacerbation of asthma, along with other respiratory symptoms
- Secondary Damage: If the initial water is not thoroughly dried, it can cause secondary issues like paint blistering, wallpaper peeling, and damage to finishes, often requiring complete replacement .
- Electrical Safety Hazards: Reduces the performance of wire insulation layers, which can easily trigger short circuits, electrical leakage, or even fires.

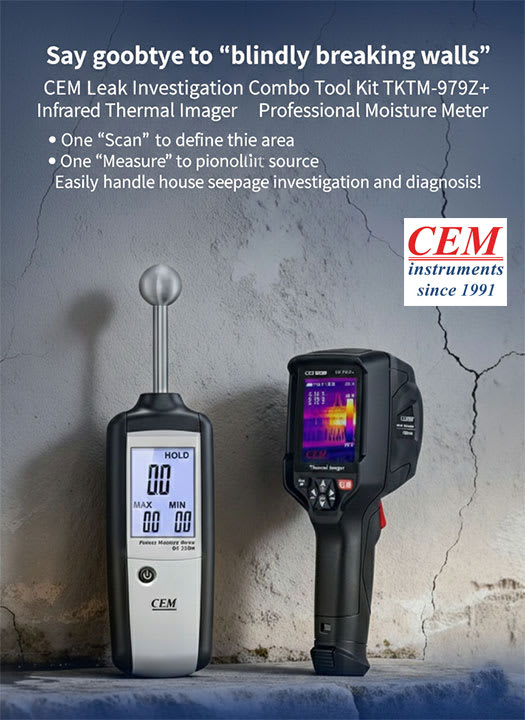

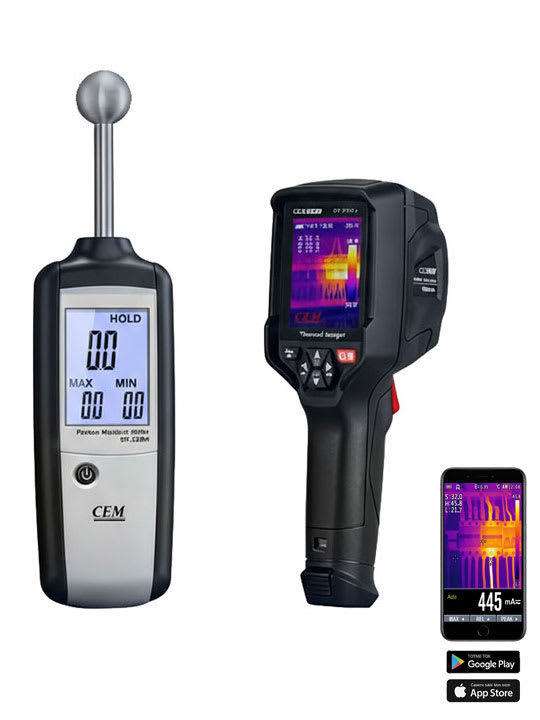

Using thermal imager and Moisture Meter
Thermal imaging cameras and moisture meters form an indispensable golden combination in modern building moisture detection and remediation. Simply put, their collaborative approach is as follows: Thermal imaging cameras handle “rapid screening” of large areas to pinpoint suspicious spots; moisture meters then perform “precise diagnosis” to confirm whether moisture issues exist at these locations and determine their severity.
- Thermal camera = fast detection
- Moisture meter = proof & measurement
- Together = accurate diagnosis + reduced false positives
Applications:
Building moisture and restoration

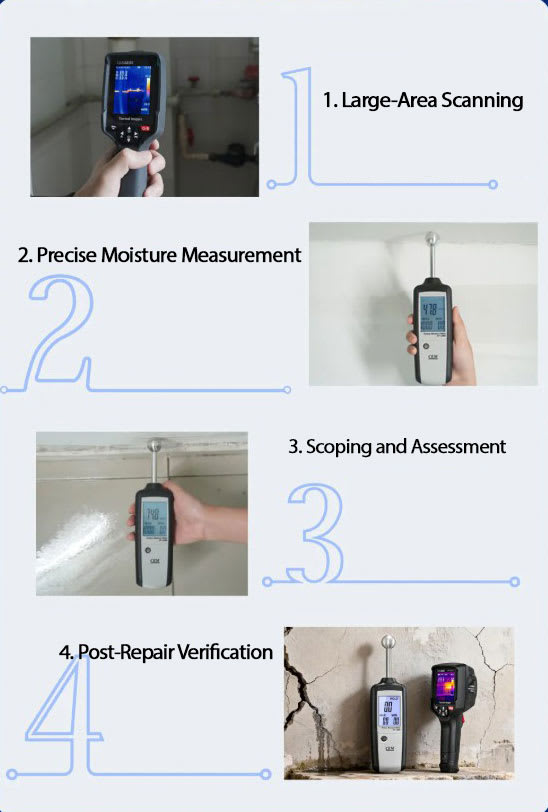

steps of how to do Moisture Control and Restoration
it describes a systematic process to remove water, dry structures, prevent contamination, and repair damage.
- Perform a Thermal Scan – Use the thermal imager to scan Walls / Ceilings. Look for: Cool spots, Irregular temperature patterns

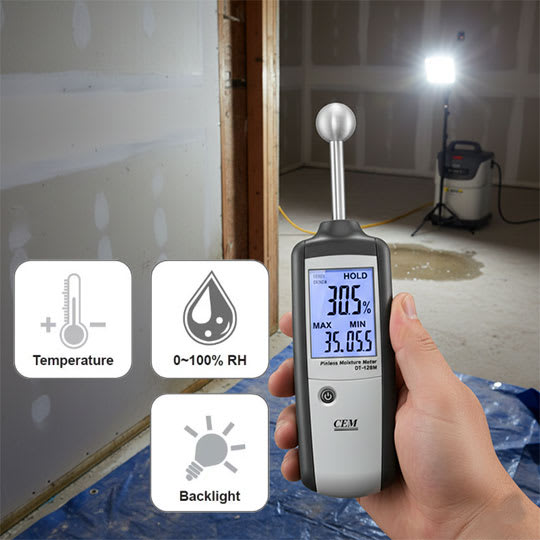

- Verify with Moisture Meter - Once you find suspicious areas: Use a pinless meter to scan the surface. If elevated readings appear, use a pin meter to confirm depth and severity.
- Emergency Water Extraction – Standing water is removed quickly using pumps and vacuums to prevent further damage.
- Structural Drying – Specialized equipment such as air movers and dehumidifiers is used to dry affected areas, including hard-to-reach spaces.
- Monitoring – Moisture levels are continuously tracked to ensure proper drying and make adjustments as needed.
- Cleaning and Decontamination – Areas are cleaned and treated to prevent mold and eliminate contaminants.
- Restoration and Repair – Once dry, damaged materials are repaired or replaced to restore the property.
Features
tool application |
Building Moisture Control and Restoration |
|
|
|
image quality |

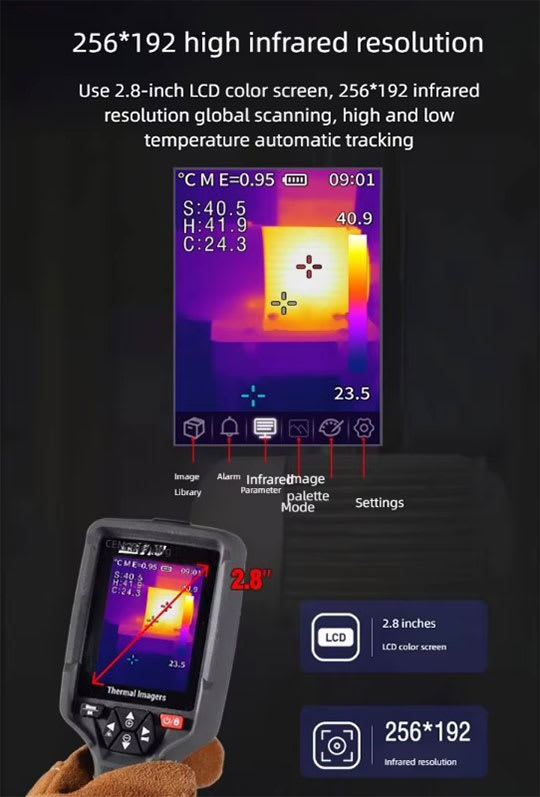

Higher resolution 256 x 192, 3 Million Pixel Visible Light Camera |
Temperature Range |
-20°C to 550°C: Suitable for multiple scenarios and applications. |
precise imaging |

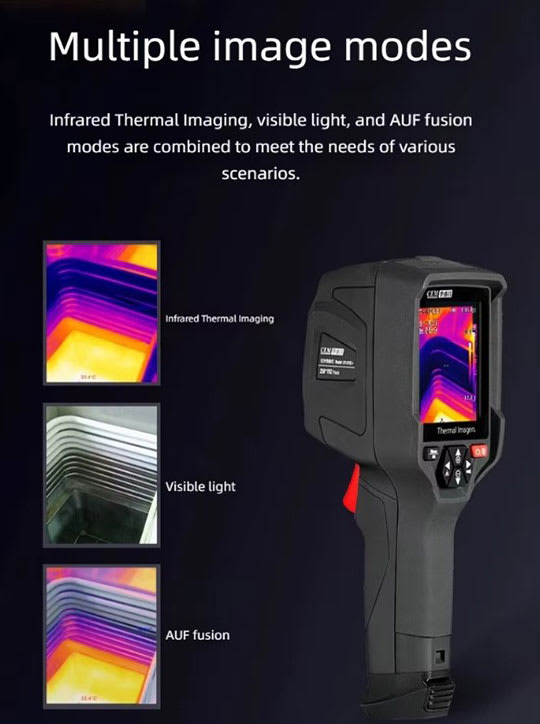

AUF Patented Fusion Technolog |
Thermal Sensitivity (NETD) |
NETD ≤ 50 mK, detects smaller temperature differences. |
Image Capture + Storage |
yes |
|
|
|

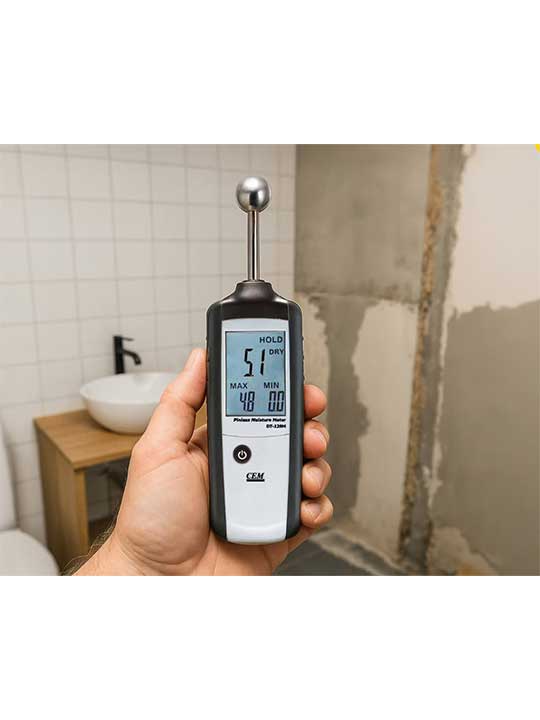

Pinless (Non-Invasive) Meter |
No penetration — scans larger area quickly. Ideal for drywall, floors, ceilings |
Material-Specific Calibration |
yes |
Depth of Measurement |
20mm – 40mm |
Hold/peak functions |
yes |
|
|
|
Wireless Connection |

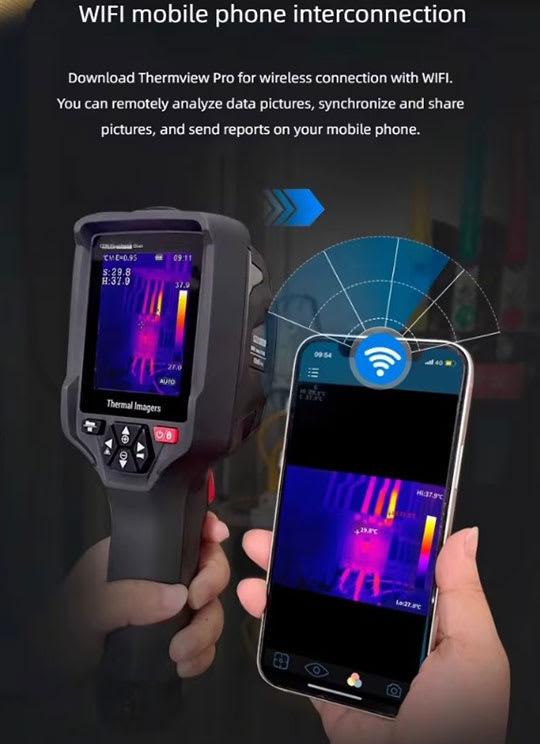

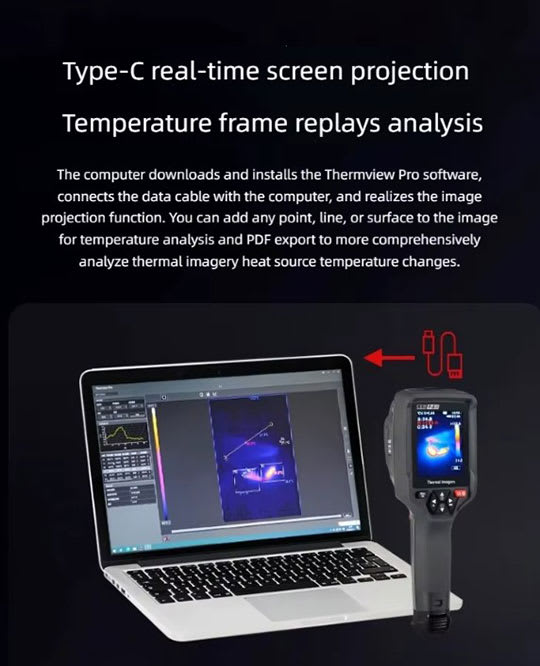

support Bluetooth APP wireless data transmission , Data export |
|
|
|
IP Rating |
IP65, 3m drop protection, Protected against dust, water |
Ease of use |
Easy to view and analyze images quickly, measurement tests |
|
|
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
