Infrared Temperature Calibrator / Blackbody Source

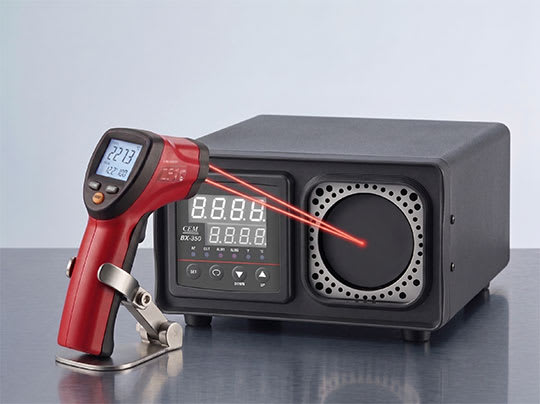

CEM BX-350 / BX-500 / BXC-15 is a specialized instrument used to check and calibrate the accuracy of non-contact infrared thermometers, thermal cameras, and pyrometers.
It provides a stable and precisely controlled temperature surface with radiation characteristics, which serves as a reference for testing and calibrating infrared measurement devices.
Applications:
IR calibrators are important tools in many industries where accurate, non-contact temperature measurement is required:
- Industrial Maintenance: Calibrating infrared thermometers and thermal cameras used for electrical inspections, equipment checks, and process monitoring.
- Medical and Clinical: Checking the accuracy of ear thermometers used to measure body temperature.
- Manufacturing and Production: Testing and calibrating infrared sensors used in automated production lines and thermal processing equipment.

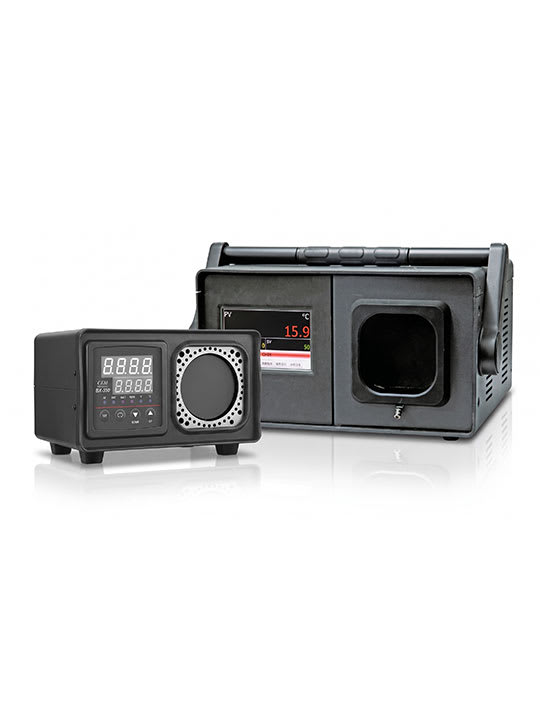

Model choice & features
Model | Temperature Range | Ideal For |
BX-350 | Up to 350 °C (662 °F) | High-temperature IR calibration |
BX-500 | Up to 500 °C (932 °F) | High-temperature IR calibration |
BXC-15 | –15 °C to 120 °C (5 °F to 248 °F) | Low-temperature IR calibration with fast transitions |

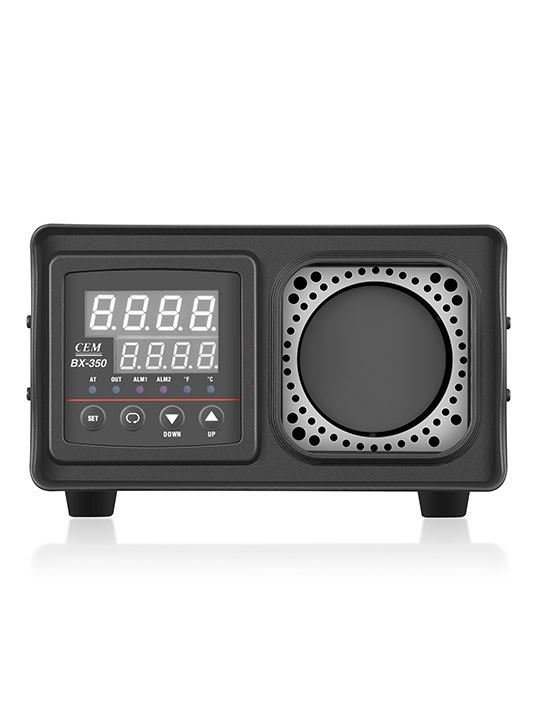

CEM BX-350 / BX-500 – High Temperature Blackbody Source (up to 350 °C / up to 500 °C)
- Designed for IR calibration above ambient temperature
- Provides a stable blackbody surface with temperatures up to 350 °C (662 °F) / 500 °C (932 °F)
- Fast heating and cooling help save time and improve workflow efficiency
- Radiometric calibration provides reliable and accurate measurements across the full temperature range
- blackbody target with a diameter of 2.25" (57 mm)
- Ideal for calibrating and checking infrared thermometers, thermal cameras, and pyrometers
- Suitable for industrial maintenance, laboratories, manufacturing, and quality control
- Useful for verifying infrared sensors used in electrical inspections, equipment monitoring, and automated production processes

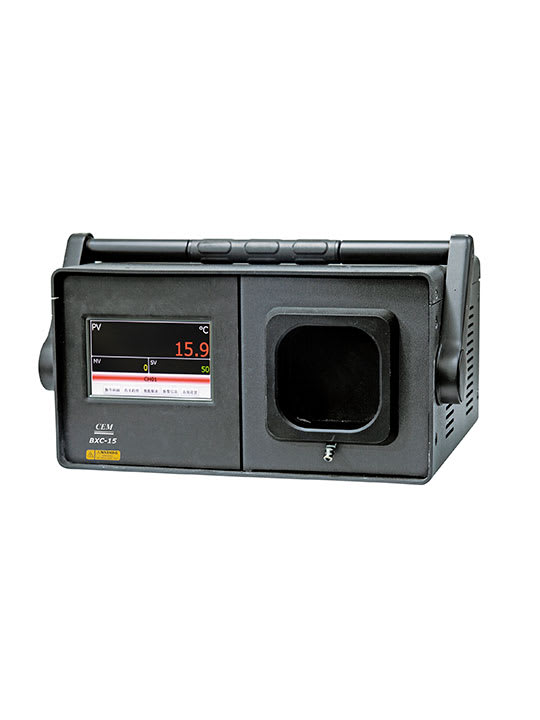

CEM BXC-15 -- Low-Temperature Blackbody Source (–10 °C to 120 °C)
- Ideal for calibrating IR thermometers at low temperatures
- Cools down to –15 °C (5 °F) under typical ambient conditions using solid-state cooling
- Provides stable temperature control up to 120 °C (248 °F)
- Fast heating and cooling from ambient temperature to either extreme in approximately 15 minutes
- Accurancy with ±0.40°C. For even higher precision, a contact calibration well is located directly behind the blackbody surface. Using an optional digital RTD thermometer and calibrated secondary probe, accuracies of ±0.1°C can be achieved.
- Ideal for testing and calibrating infrared thermometers, thermal cameras, and pyrometers
- Suitable for laboratories, industrial maintenance, manufacturing, and quality control
- The low-temperature infrared calibrator control interface adopts advanced color touch screen technology
- using ethernet access to achieve two-way communication and control with the upper computer
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
