Infrared Temperature Calibrator / Blackbody Source
A specialized instrument used to check and calibrate the accuracy of non-contact infrared thermometers, thermal cameras, and pyrometers.

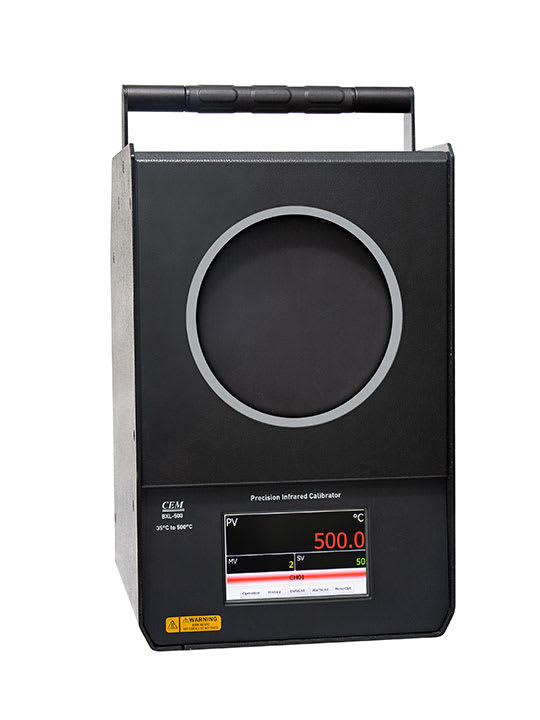

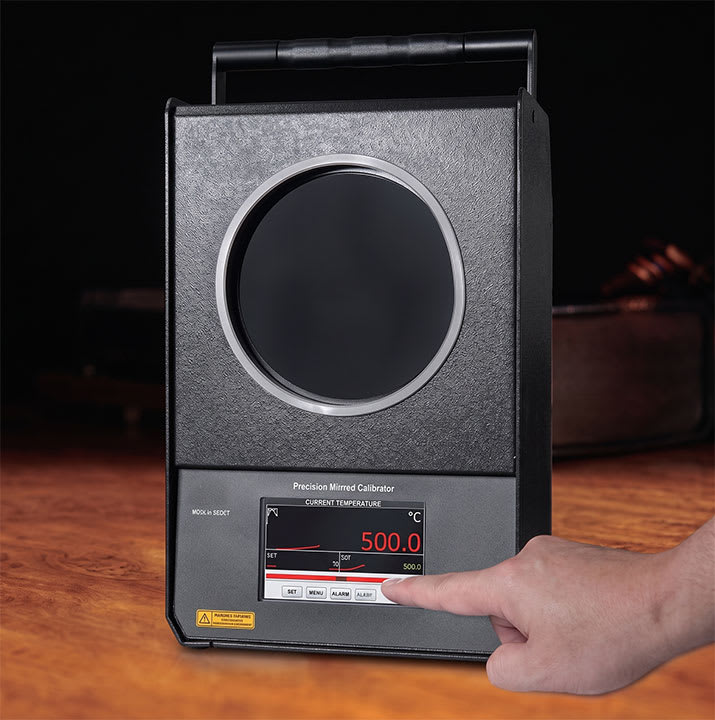

CEM BXL-500 is a high-precision laboratory instrument designed for maximum accuracy and for calibrating a wide range of devices, including thermal imaging cameras.
The BX-350 / BXC-15 series is a portable field calibrator designed for quick and convenient testing of handheld infrared thermometers.
Applications:
IR calibrators are important tools in many industries where accurate, non-contact temperature measurement is required:
- Industrial Maintenance: Calibrating infrared thermometers and thermal cameras used for electrical inspections, equipment checks, and process monitoring.
- Medical and Clinical: Checking the accuracy of ear thermometers used to measure body temperature.
- Laboratories and Metrology: Providing a reliable temperature reference for calibrating pyrometers and other infrared thermometers, with traceability to standards such as ITS-90.
- Manufacturing and Production: Testing and calibrating infrared sensors used in automated production lines and thermal processing equipment.
features
Accredited Radiometric Calibration Included
Each unit ships with an NVLAP-accredited radiometric calibration, so results are directly traceable and you can meet specs without doing extra emissivity corrections .
Large 152 mm (6 in) Target
The oversized target is the defining feature. IR thermometers have "peripheral vision" that can skew readings;, reducing errors caused by the size-of-source effect .
Wide Temperature Range (35 °C to 500 °C)
This model covers 35 °C to 500 °C .
Lightweight for a Bench Instrument
At just 9 kg , it's portable enough to move around a lab or benchtop when needed .
High Accuracy and Stability
Display accuracy reaches ±0.35 °C , and stability is as tight as ±0.05 °C . This enables a Test Uncertainty Ratio (TUR) as good as 4:1 .
Fast Settling Time
This model stabilizes in about 10 minutes, it heats from 35 °C to 450 °C in roughly 20 minutes
TFT Color Display with advanced touch Screen
Intuitive and easy operation by touch screen
PC Connectivity & Data Management
Through ethernet port, measurement data can be communicated with PC
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
