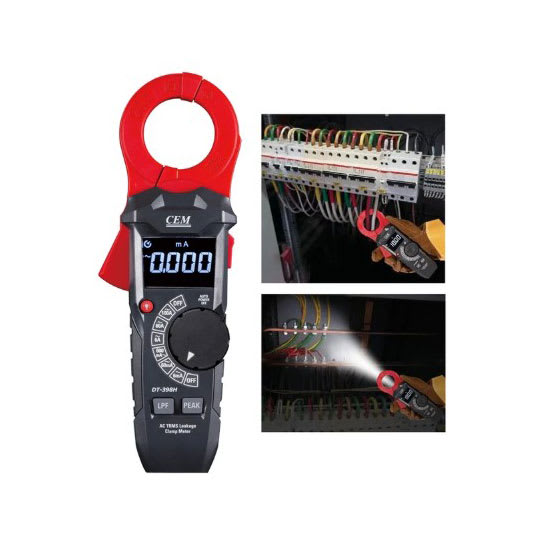

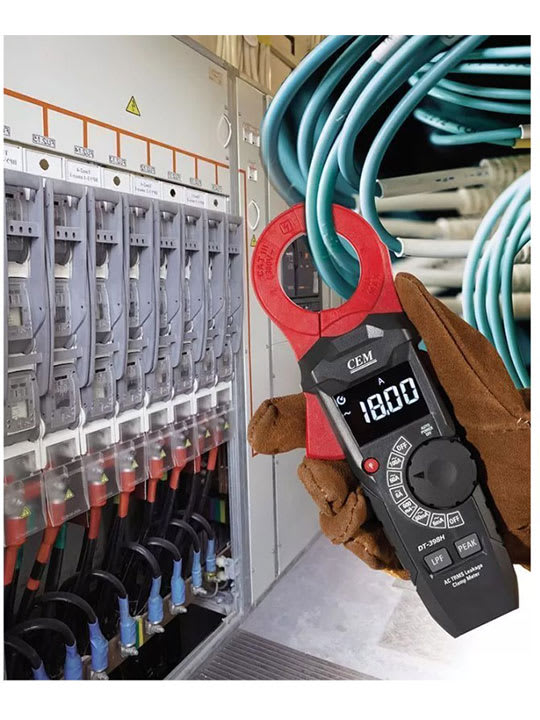

Leakage current clamp meters are used on circuits without the need to cut wires or open connections, making them a non-intrusive and safe tool.

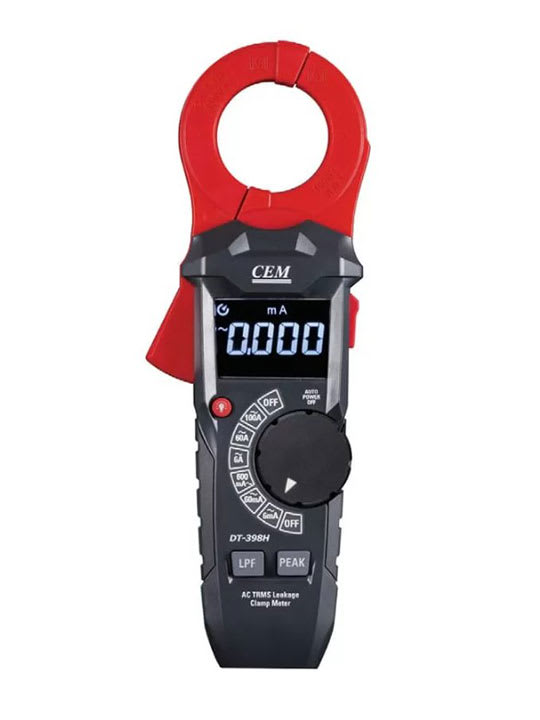

CEM DT-398H is a True-RMS leakage current clamp meter allows users to detect leakage currents, prevent downtime and identify GFCI and RCD trips — all without shutting down equipment.
The meter features a 30 mm jaw opening for use with bigger conductors. Its fully shielded jaw ensures precise measurement of even very small leakage currents while minimizing the impact of external electromagnetic interference.
High Sensitivity for Small Currents: Unlike standard clamp meters that measure high currents, a mini leakage current meter is designed to detect very small currents in the milliamp (mA) range.
It can measure leakage currents as low as 0.001mA (1 µA)
AC current supports 6 range: 6mA, 60mA, 600mA, 6A, 60A, 100A
Safety:
IEC61010-1 CAT III 300V
UL, CSA, and TÜV listed for maximum safety and global compliance
Applications:
- Electrical Safety Testing: Check electrical circuits for dangerous leakage currents that could cause electric shocks or fires.
- Automotive Diagnostics: Find small parasitic currents that can drain a car battery when the vehicle is switched off.
- Industrial Maintenance: Troubleshoot control systems, PLCs, and sensor circuits without shutting down the equipment.
- Data Center Maintenance: Monitor low currents and detect leakage in server racks and electrical distribution cabinets.
- Preventive Maintenance: Identify problems such as damaged insulation or faulty components before they lead to equipment failure, shutdowns, or fires.
Features
leakage current measurement | Accurate AC digital clamp meter for leakage current measurement |
Display | 6000 Counts LCD display |
Large jaw | Large jaw with 30 mm diameter |
AC leakage currents | measure leakage currents as low as 0.001mA (1 µA) |
Range and resolution | 6 Ranges (6mA, 60mA, 600mA, 6A, 60A, 100A), Resolution with 1 μA |
accuracy | high accuracy ± (1.0% + 8d) |
True RMS | Provides accurate readings even on circuits with non-linear loads like variable frequency drives and switching power supplies |
Low-pass filter (LPF) | Low-pass filter (LPF) mode to eliminate Noisy interference |
Flash Light | Yes |
Data Hold , PEAK | Freezes the reading on the display, which is helpful when working in hard-to-see areas or dimly lit environments |
safety ratings | IEC61010-1 CAT III 300V |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
