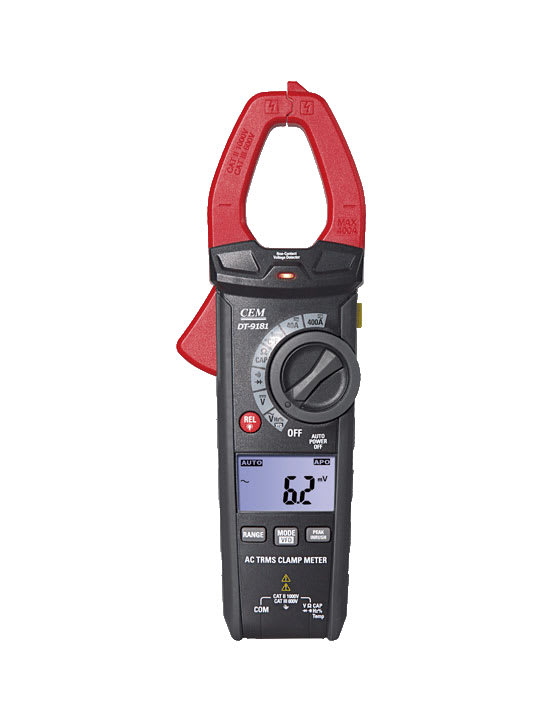

CEM DT-9181 is a useful tool for troubleshooting general AC / DC Electrical Systems and quickly finding electrical problems.
for example. circuits, motors, transformers, distribution panels, and electrical installations..
CEM DT-9181 combines several measurement functions in one compact handheld tool, making it suitable for everyday electrical testing and troubleshooting.
Core Capabilities
-- Clamp-on Current Measurement:
Measures AC and DC current up to 400 A without disconnecting the circuit. The clamp jaw can accommodate conductors up to 30 mm in diameter.
-- Multimeter Functions:
Measures AC/DC voltage up to 1000 V and resistance up to 40 MΩ, allowing users to perform most common electrical tests with a single instrument.
-- Advanced Measurements:
In addition to basic electrical measurements, CEM DT-9181 can measure frequency, capacitance, and temperature using the included K-type thermocouple. These functions are useful for troubleshooting motors, HVAC systems, and other electrical equipment. Inrush Current, capture the high starting current of motors and other electrical equipment.
-- Non-Contact Voltage (NCV)
safety feature that allows users to detect the presence of live AC voltage without making direct contact with a conductor
Safety:
IEC61010-1 CAT II 1000V / CAT III 600V
CE, UL, CSA, and TÜV listed for maximum safety and global compliance
Applications:
-- electrician work
-- HVAC
-- Automotive repair
Features
tool application |
electrician work, conduct troubleshooting of general AC current systems |
safety |
IEC61010-1 CAT II 1000V / CAT III 600V |
|
|
|
current Range |
AC up to 400A |
Voltage Range |
up to 1000V |
Jaw Opening |
Φ 30 mm Thin, small jaws, Fits around tightly packed conductors in panels |
|
|
|
functions |
Measurement of AC/DC voltage, AC/DC current, resistance, temperature , capacities and continuity. |
True RMS |
Industrial systems often use non-linear loads (VFDs, inverters, motors).True RMS ensures accurate readings even with distorted waveforms |
Inrush Current |
capture the high starting current of motors and other electrical equipment |
NCV |
non-contact voltage detection, practical for electrician work |
|
|
|
Ease of use |
Modern design, Easy-to-Use |
Backlight for LCD, Flashlight |
dim electrical rooms, Illuminates dark panel interiors |
certification |
CE, TüV certification |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
