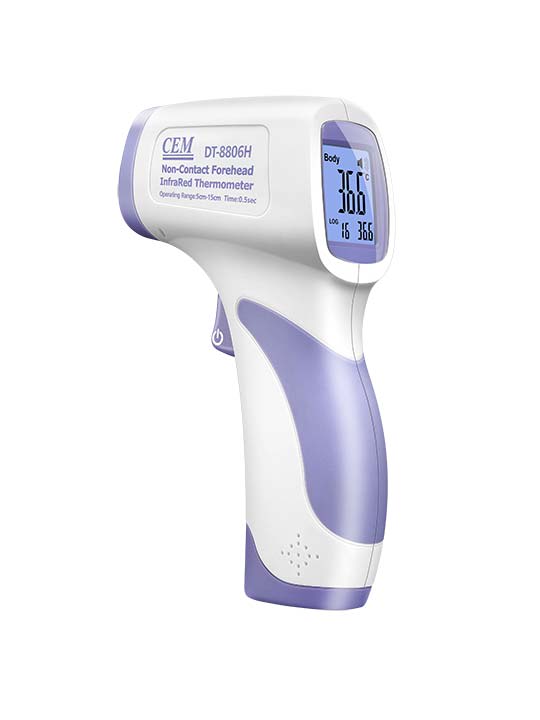

DT-8806H Non-Contact Clinical Forehead InfraRed Thermometer

The 8806H is ideal for quickly screening individuals for elevated skin temperature. This infrared thermometer has a non-contact design that eliminates the need for replacement probe covers and other supplies. The 8806H is accurate to 0.5F(0.3℃) with 0.1F/℃ resolution when measuring skin temperatures between 89.6F to108.5F(32.0℃ to 42.5℃). Adjustable alarm alerts user visually and audibly when temperature exceeds programmed limit. Optimum measurement distance of 1.9 in, to 5.9 in, (5 to 15 cm). Move the Body/Surface function switch to the Surface position for non-contact surface temperature measurements from 32F to140℉ (0.0℃ to 60.0℃). With a fast response of just 0.5 seconds, users can simply press the trigger and read temperature on the large backlit LCD display. Memory stores up to 32 readings for easy recall.



DAG-10 is a digital angle gauge and level . It can measure or set angles, check relative angles, or can be used as a digital level,

The DAG-20 is a digital angle gauge that detects the degree of offset from true level. It can measure from0-180*. When laid flat, it will function as a bullseye level.

  • The measuring surface has a built-in magnet for easy attachment to the workpiece, easy to measure.
  • Rapid and stable reading, which is convenient for use with other measuring tools to expand the measurement range.

Relative/absolute measurement can be exchanged at any position, and reading conversion of angle and tilt is supported.

Features
