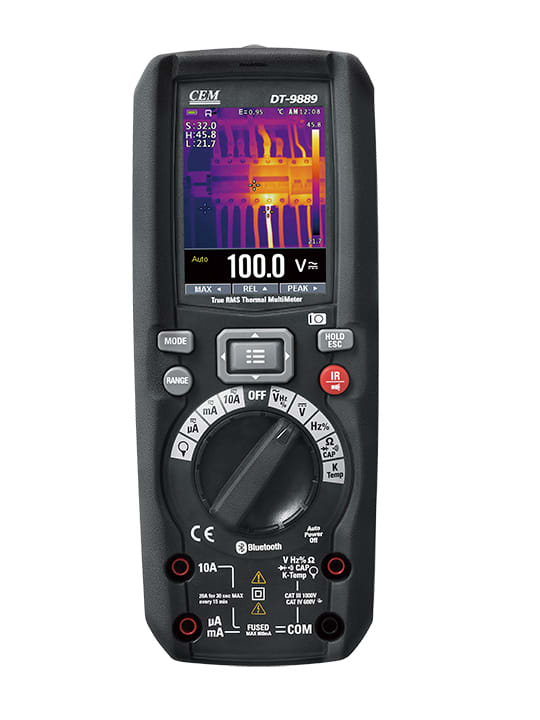

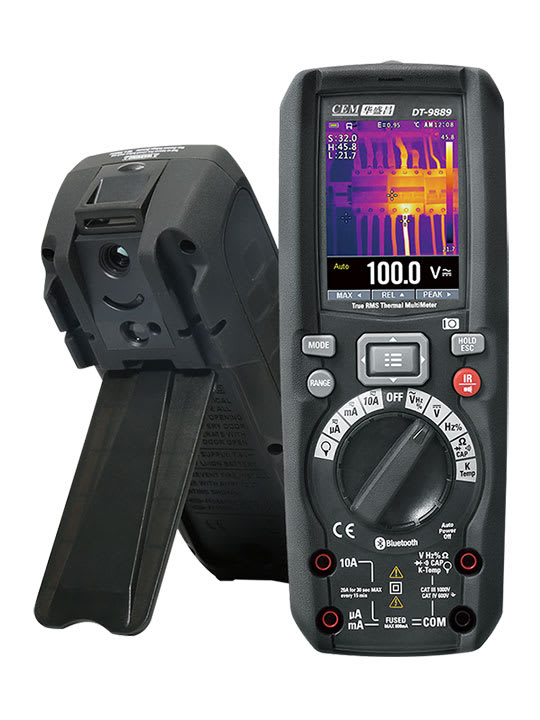

CEM DT-9889 True-RMS Thermal Digital Multimeter, Wireless (PC / App)

A multimeter with integrated thermal imaging is a hybrid diagnostic instrument that consolidates two essential tools into a single device:

A digital multimeter (DMM) for measuring electrical parameters.

A thermal imager (infrared camera) for detecting temperature variations and visualizing heat patterns.

This dual-function capability enables technicians to simultaneously assess thermal conditions and electrical values, thereby enhancing both the speed and safety of troubleshooting.

Categories: Digital Multimeters, Electrical Tools

As main use for True-RMS Thermal Digital Multimeter

First, use the thermal imager for a wide-area scan to quickly pinpoint abnormal hot spots; then use the multimeter function for targeted measurements to accurately diagnose the cause. This approach is significantly more efficient than switching back and forth between two separate sets of tools.

advantage of these tools

Faster troubleshooting
Increased safety (non-contact temperature check)
Portable and compact
Saves time and equipment cost

Safety:

IEC61010-1 CAT IV 600V / CAT III 1000V
UL, CSA, and TÜV listed for maximum safety and global compliance

Applications:

Industrial maintenance
Electrical panel inspection
HVAC systems
Automotive diagnostics
Renewable energy systems (solar panels)
Research laboratories

Features

tool application	for electrical installation, more professional ,faster troubleshooting, Increased safety, non-contact troubleshooting
2 in 1	Full-featured multimeter with built-in thermal imager
measurement functions	True RMS , AC/DC voltage, current , resistance, continuity, capacitance, diode test, Min/Max/Avg, datalogging and Trend Capture features , etc.

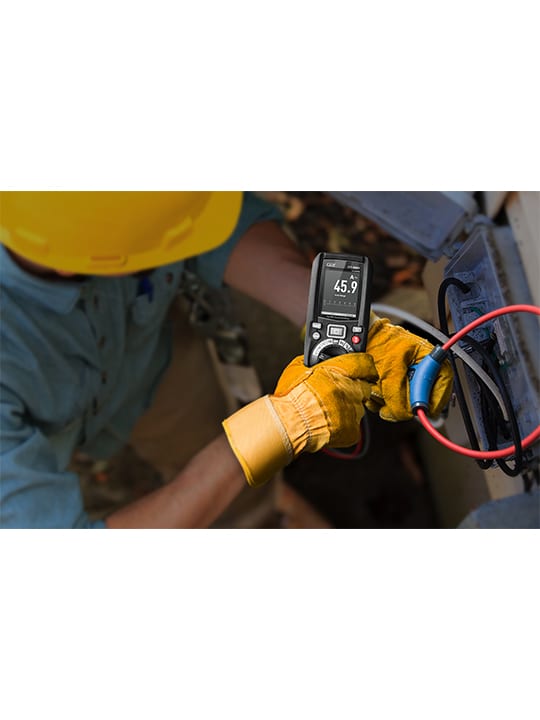

current measurement	support Flexible clamp , measure current up to 3000A
low pass filter	accurate measurement of variable frequency drive (VFD) signals
non contact voltage detection	yes
thermal imaging & troubleshooting	quickly identifiy hot spots without contact
temperature detection	-20 to 260°C (-4 to 500°F)
image process	capture screen capabilities and storage
Wireless Connection	support Bluetooth APP wireless data transmission ,
Display	TFT LCD color screen
safety ratings	IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V

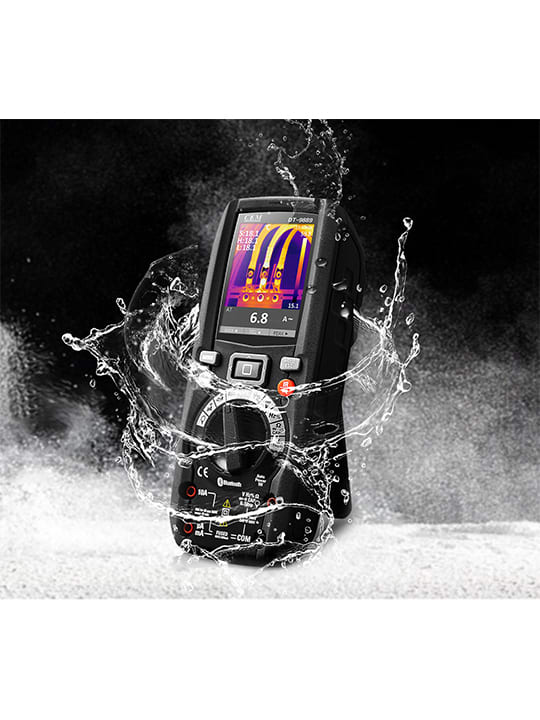

IP Rating	IP65, 3m drop protection, Protected against dust, water
Ease of use	Easy to view and analyze images quickly, measurement tests
