CEM TKCM-9382 industrial Clamp Meter True-RMS , with Flexible Probe

Category: Clamp Meters

Product overview: CEM TKCM-9382 industrial Clamp Meter with Flexible Probe, True-RMS

Places like factories, power plants, HVAC systems, and panel shops need more advanced features。

For anyone who maintains industrial equipment, the clamp meter is the first tool they grab, because it gives them the most useful information without having to shut down the machine for long.

narrow down the cause of difficult troubleshooting

designed for places with high electrical power, lots of background noise, and large startup current surges. What really sets them apart are four key features: True RMS (for accurate readings on non-sine waves), low-pass filtering (to cut through interference from VFDs), inrush capture (to measure startup surges), and CAT IV safety rating (for protection on high-power systems). These features are essential if you want to troubleshoot industrial electrical systems safely.

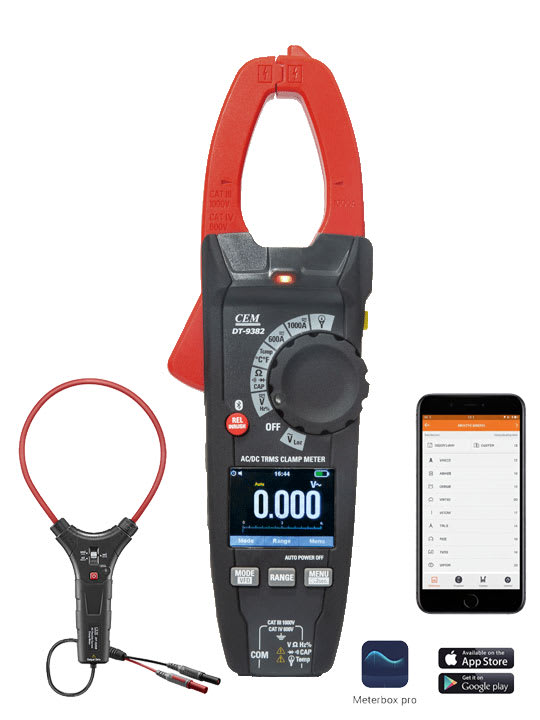

The flexible current probe that comes with the tool makes it much easier to reach and measure around big wires in cramped or hard-to-access spots.

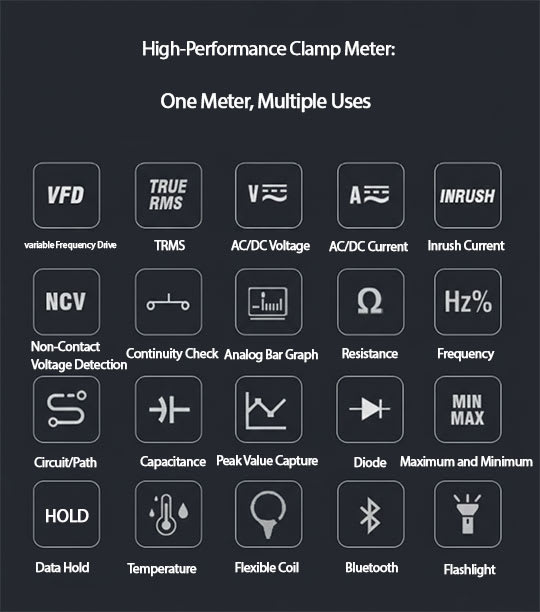

measurement functions:

Measurement		use in Industry

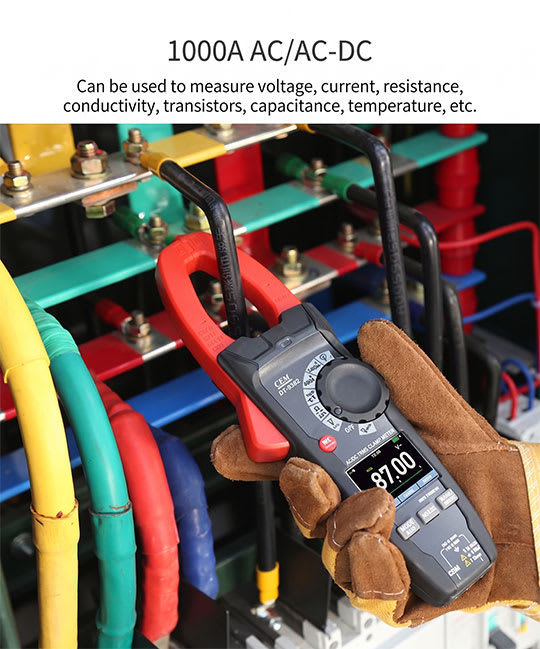

AC/DC Current	1000A, up to 3000A with flexible probes	Motor load monitoring, verifying heater elements, balancing panel loads.
Voltage	1000V	Checking control transformer outputs, phase-to-phase voltage.
Resistance/Continuity	60MΩ with continuity detection	Winding resistance checks, fuse testing, contact verification.
Capacitance	60nF - 100mF	Checking motor start/run capacitors.
Frequency	100kHz	Verifying VFD output frequency to match commanded speed.
Diode Check	yes	Testing rectifiers in drives or power supplies.

wireless connectivity

With wireless Bluetooth connectivity, you can record, track, and watch measurements from a safe distance outside the arc flash danger zone.

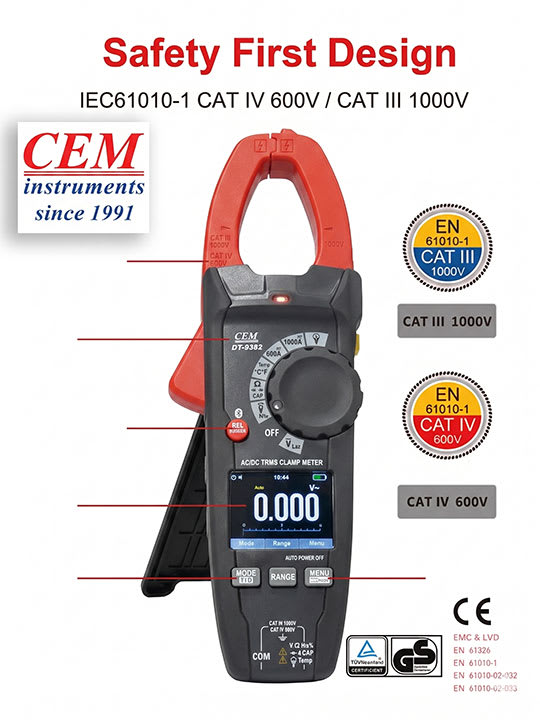

Safety:
IEC61010-1 CAT III 1000V / CAT IV 600 V
CE and TÜV certification for maximum safety and global compliance

Applications:
-- Motor Diagnostics
-- HVAC & Refrigeration (Industrial use)
-- Control panel maintenance

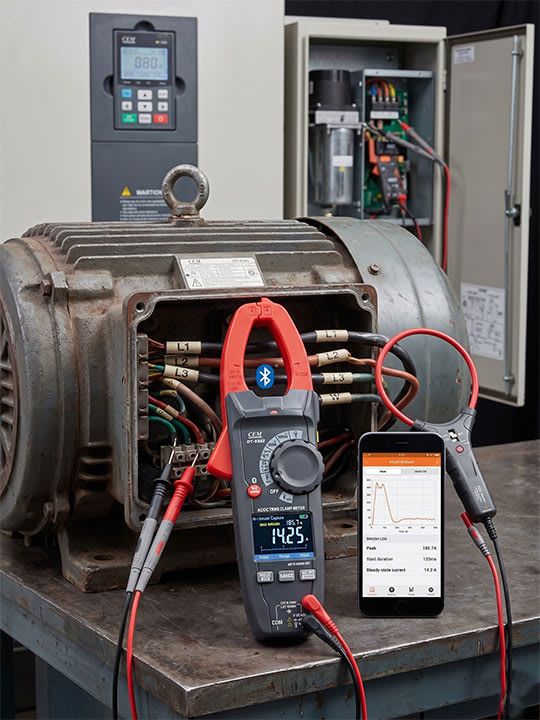

troubleshooting a Motor

Three-phase induction motors do most of the heavy lifting in industry. When a motor isn't working right, the first tool you reach for is a clamp meter to figure out whether the motor itself is breaking down or if the problem is caused by whatever the motor is powering.

. Spotting overloads – when the motor is being pushed too hard.

. Figuring out if the problem is mechanical or electrical – so you know whether to check the motor's moving parts or its electrical supply.

. Checking the start-up surge (Inrush Capture) – analyzing how much current the motor pulls when it first turns on.

. Verifying VFD output – making sure the device that controls the motor's speed is working correctly.

Features

tool application	industrial work, eg. Motor Diagnostics
safety	IEC/EN 61010: CAT III 1000V / CAT IV 600V,

AC/DC current	up to 1000A
AC/DC Voltage	up to 1000V
Jaw Size and Type	Φ 34 mm

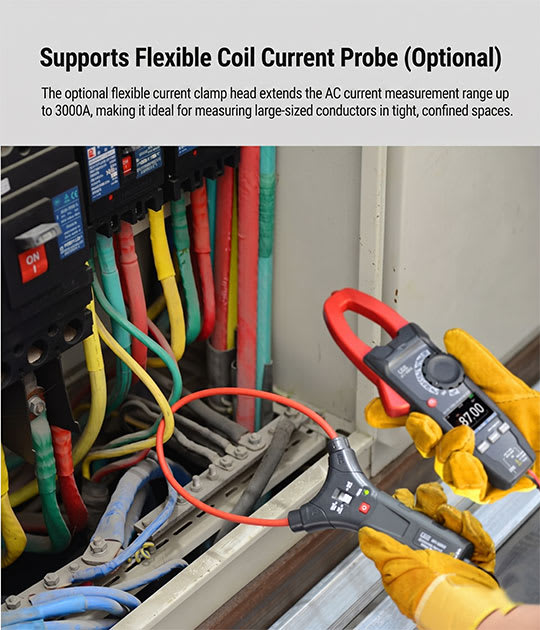

Flexible Probe	For extremely tight spaces, a flexible current probe up to 3000A can be attached

functions	Measurement of AC/DC voltage, current, resistance, capacitance, continuity, etc.
additional functions	support Max/Min; Peak Capture, NCV , etc.
True RMS	Industrial systems often use non-linear loads (VFDs, inverters, motors). True RMS ensures accurate readings even with distorted waveforms
Inrush Current	This feature captures the high startup current of motors and drives This is critical for diagnosing startup failures or nuisance breaker trips.
Low-Pass Filter (LPF)	Variable frequency drives (VFDs) create noisy electrical signals. A low-pass filter ensures accurate voltage and current readings on VFD outputs

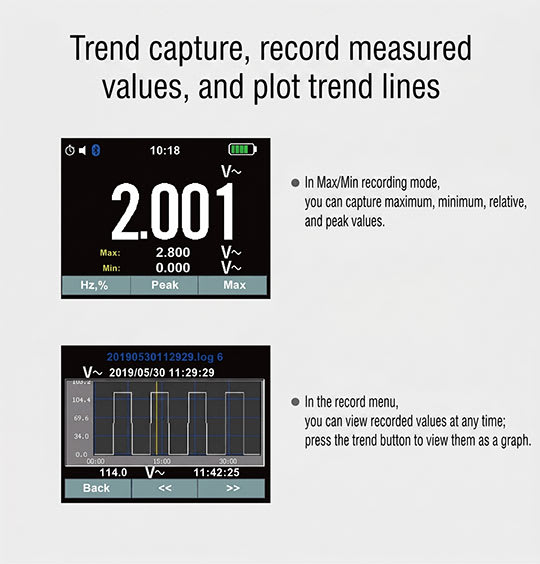

Data Logging	a built-in logging feature
Wireless Connectivity	Bluetooth support smartphone, data transfer, process and report

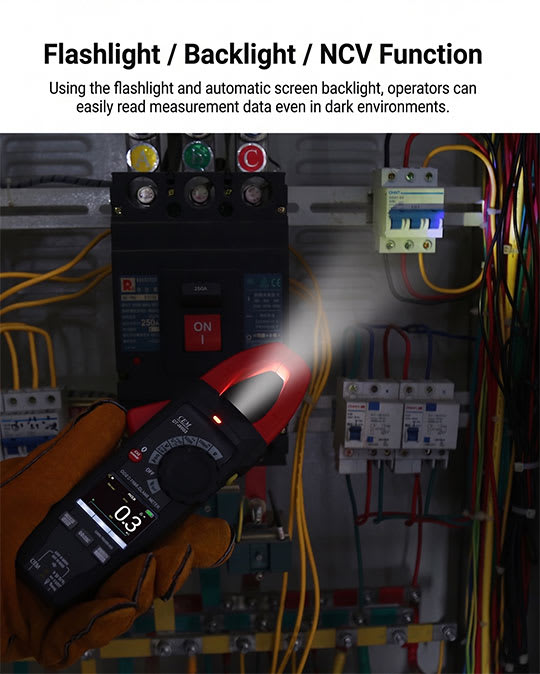

Backlight for LCD, Flashlight	dim electrical rooms, Illuminates dark panel interiors
IP Rating	IP67 dust and water proof. 2 meter drop protection rated for outdoor use
certification	CE, TüV certification
