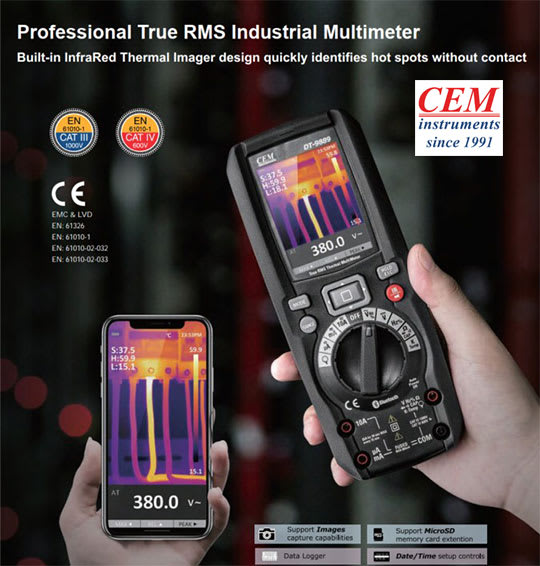

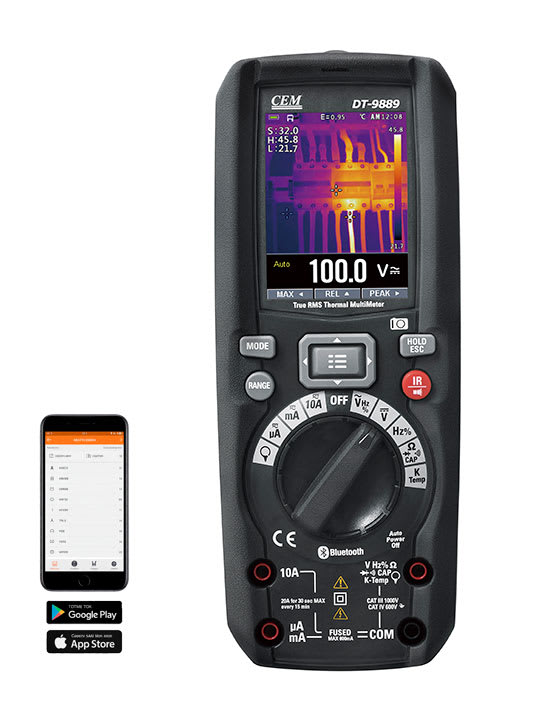

As main use for True-RMS Thermal Digital Multimeter
First, use the thermal imager for a wide-area scan to quickly pinpoint abnormal hot spots; then use the multimeter function for targeted measurements to accurately diagnose the cause. This approach is significantly more efficient than switching back and forth between two separate sets of tools.
advantage of these tools
- Faster troubleshooting
- Increased safety (non-contact temperature check)
- Portable and compact
- Saves time and equipment cost
Safety:

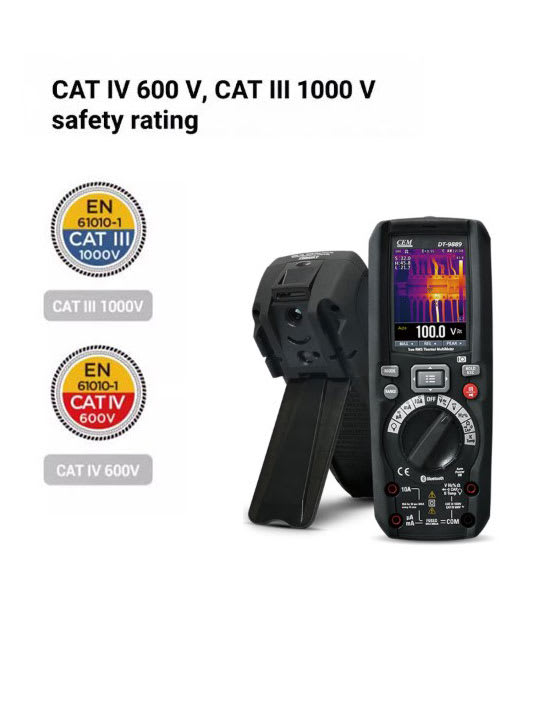

IEC61010-1 CAT IV 600V / CAT III 1000V UL, CSA,
and TÜV listed for maximum safety and global compliance
Applications:
- Industrial maintenance
- Electrical panel inspection
- HVAC systems
- Automotive diagnostics
- Renewable energy systems (solar panels)
- Research laboratories
Features
tool application |
for electrical installation, more professional ,faster troubleshooting, Increased safety, non-contact troubleshooting |
2 in 1 |
Full-featured multimeter with built-in thermal imager |
measurement functions |
True RMS , AC/DC voltage, current , resistance, continuity, capacitance, diode test, Min/Max/Avg, datalogging and Trend Capture features , etc. |
current measurement |
support Flexible clamp , measure current up to 3000A |
low pass filter |
accurate measurement of variable frequency drive (VFD) signals |
non contact voltage detection |
yes |
thermal imaging & troubleshooting |
quickly identifiy hot spots without contact |

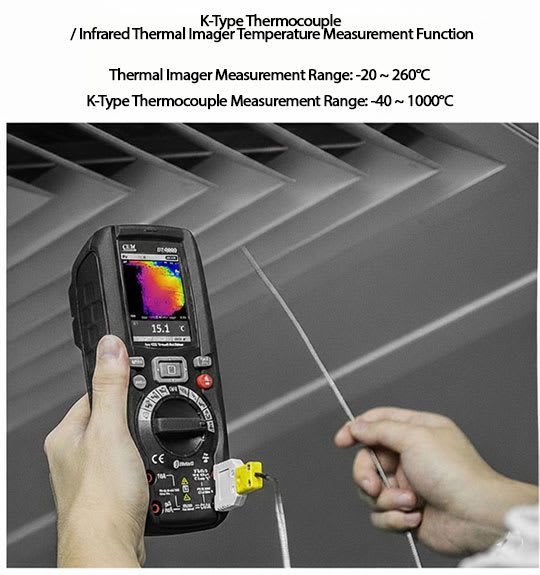

temperature detection |
-20 to 260°C (-4 to 500°F) |
image process |
capture screen capabilities and storage |

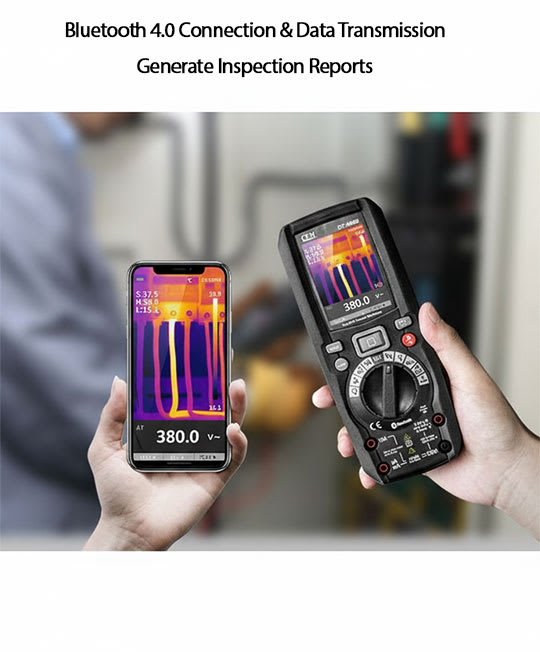

Wireless Connection |
support Bluetooth APP wireless data transmission , |
Display |
TFT LCD color screen |
safety ratings |
IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V |
IP Rating |
IP65, 3m drop protection, Protected against dust, water |
Ease of use |
Easy to view and analyze images quickly, measurement tests |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
