Troubleshooting Safety & efficiency:
- Spot problems like hot connections or overloaded circuits before they fail or cause damage.
- Reduce guesswork — you can identify where issues are happening visually.
- Combine electrical measurement and heat diagnostics in one tool — saves time and carrying extra equipment

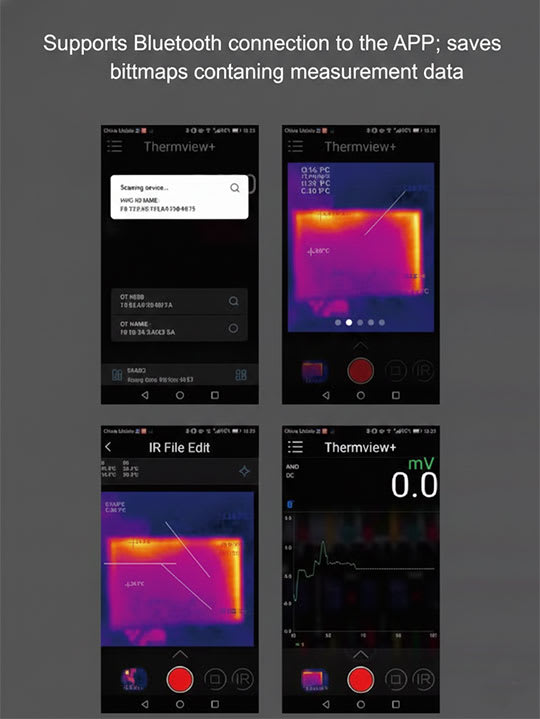

Through Wireless connection by App, the collected measurement data, include captured images, can be quickly stored and shared.
Safety:
IEC61010-1 CAT IV 600V / CAT III 1000V
UL, CSA, and TÜV listed for maximum safety and global compliance
Applications:
- Electrical installations and maintenance
- Industrial troubleshooting
- HVAC system diagnostics
- Solar system inspections
- Facility management

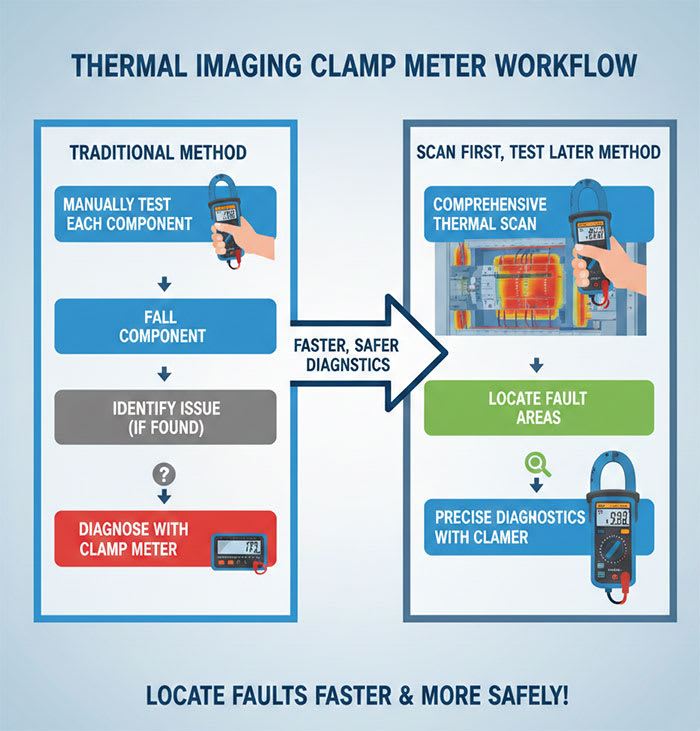

new workflow for electrical troubleshooting

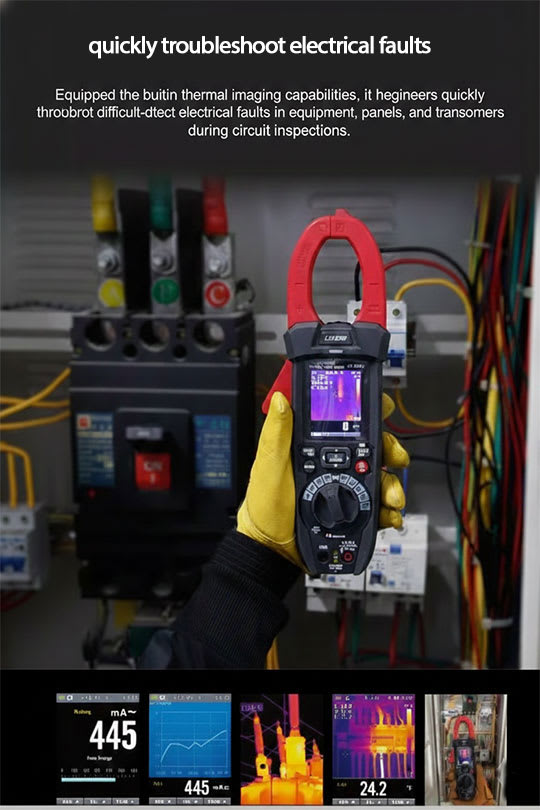

for example, Troubleshooting Electrical Cabinet Faults
Combining the “clamp meter + thermal imager” functionality fundamentally transforms the workflow: moving beyond the old method of manually testing each component with a standard clamp meter, this approach now involves first using the thermal imager for a comprehensive scan to identify issues, followed by the clamp meter for precise diagnostics. This “scan first, test later” enables faster and safer fault localization.
Features
tool application |
for electrical installation, more professional ,faster troubleshooting, Increased safety, non-contact troubleshooting |
2 in 1 |

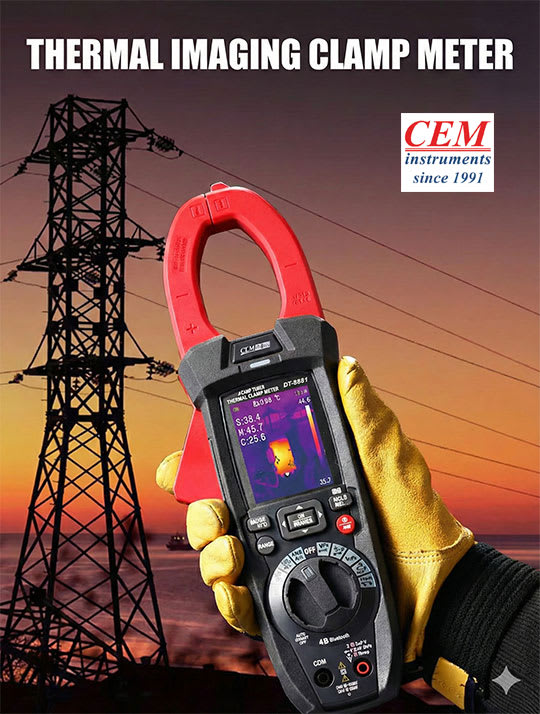

Full-featured clamp meter with built-in thermal imager |
measurement functions |

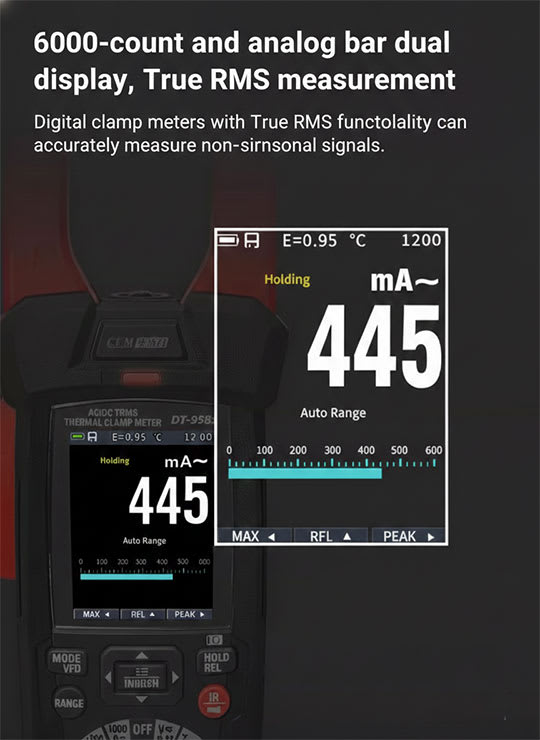

True RMS , AC/DC voltage, current , resistance, continuity, capacitance, diode test, Min/Max/Avg, datalogging and Trend Capture features , etc. |

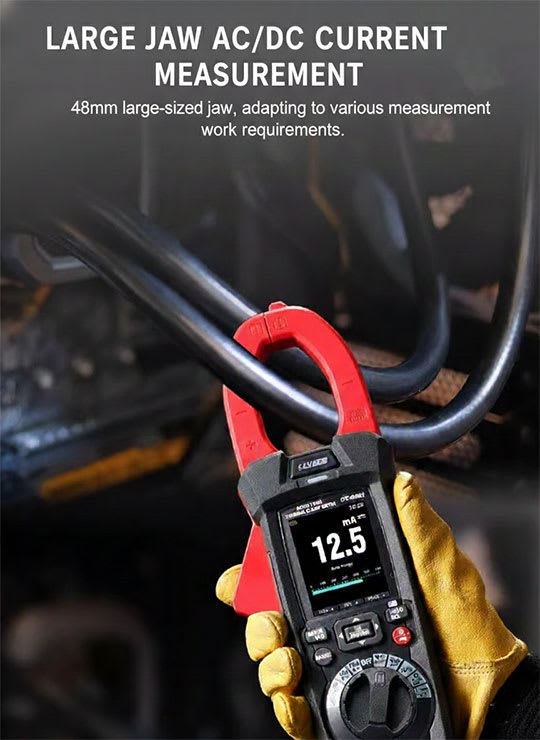

big jaw opening |
37mm jaw opening |
current measurement |

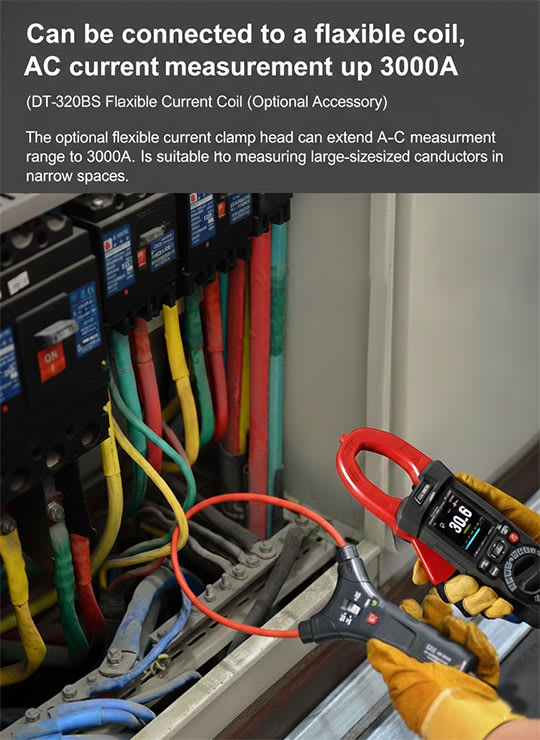

AC / DC 1000 A support Flexible clamp , measure current up to 3000A |
low pass filter |
accurate measurement of variable frequency drive (VFD) signals |

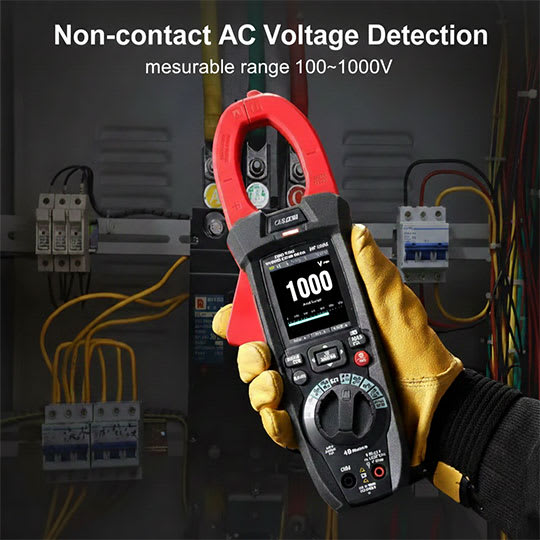

non contact voltage detection |
yes |
thermal imaging & troubleshooting |
quickly identifiy hot spots without contact |

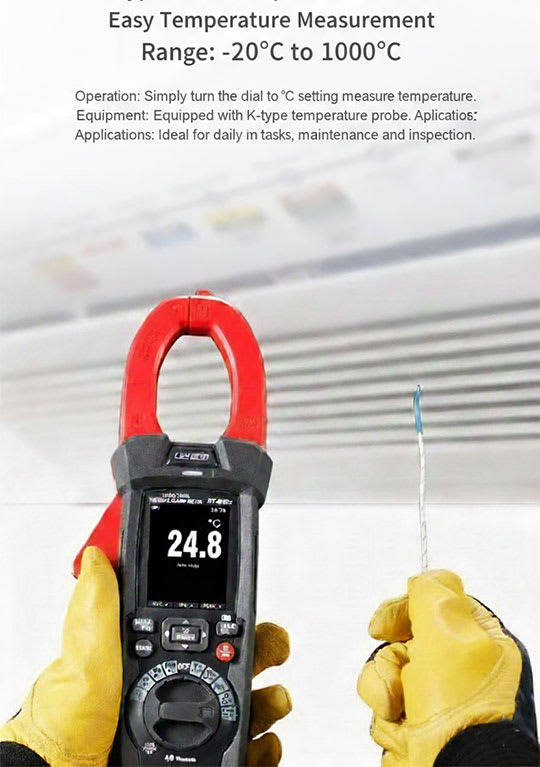

temperature detection |
-20 to 260°C (-4 to 500°F) |
image process |
capture screen capabilities and storage |

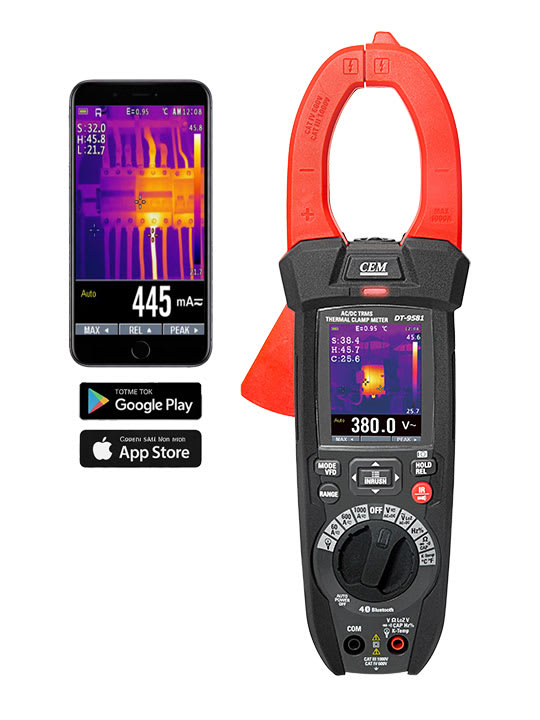

Wireless Connection |
support Bluetooth APP wireless data transmission , |

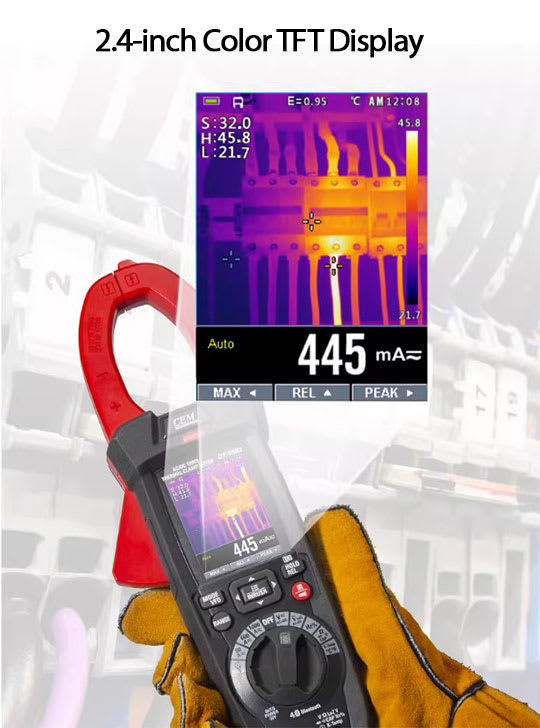

Display |
TFT LCD color screen |

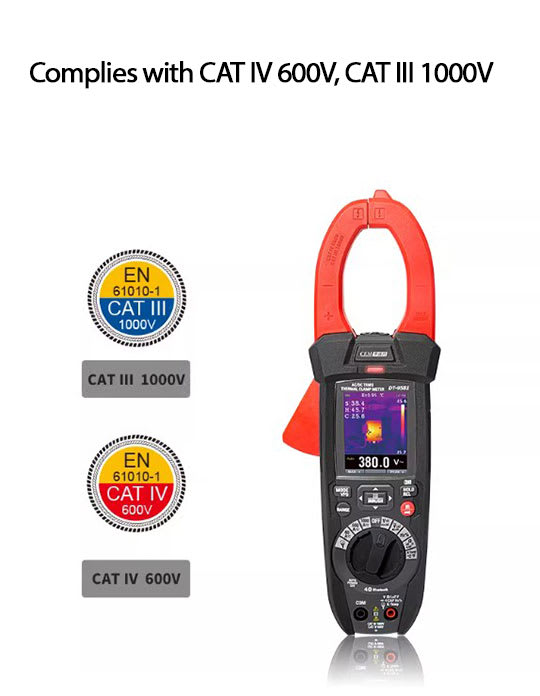

safety ratings |
IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V |
IP Rating |
IP65, 2m drop protection, Protected against dust, water |
Ease of use |
Easy to view and analyze images quickly, measurement tests |
warranty, certification
All products are CE , GS and TüV certificated.
Based on robust quality and customers’ satisfaction, generally we provide 3 years warranty .
